Polyimide FR-4 Flexible Printed Circuit Board

Product Categories

FR4 PCB [24]
PCBA Manufacturing [26]
Aluminium PCB Board [14]
FPC Circuit Board [25]
Flexible PCB Board [14]
PCB Board Manufacturing [14]
SMT PCB [18]
Rigid PCB Board [23]
Multi Layer PCB [21]
PCB Board Assembly [18]
1 Layer PCB [11]
2 Layers PCB [32]

Shenzhen Senyan Circuit Co., Ltd.

Contact Now

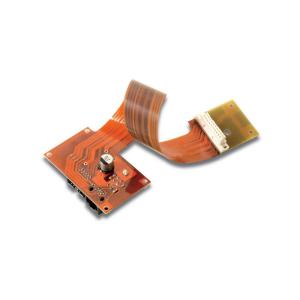

Polyimide FR-4 Flexible Printed Circuit Board

Name: Polyimide FR4 Flexible Printed Circuit Board
Brand: SenYan
Price: 1 USD

China Polyimide FR-4 Flexible Printed Circuit Board wholesale

Brand Name : SenYan

Model Number : FPC circuit board

Certification : ISO14001,ISO13485,ISO9001,IATF16949

Place of Origin : China

MOQ : 1pcs

Price : Negotiate

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 100000pcs

Delivery Time : 1-30days

Packaging Details : PCB: Vacuum Packing / PCBA: ESD Packing

Name : FPC circuit board

Base material : Polyimide,FR-4,PI/PET

Solder mask : Green

Silk Screen : White

Surface Technics : HASL-F

Max panel size : 32＂×20＂（800mm×508mm）

Layer count : 2~18

Min. line spacing : 0.075---0.09MM

Contact Now

Custom double side pet polyimide transparent pcb circuit board

Component Assembly - The service mount capability and trough hole that this design offers is a remarkable electrostatic and protective packaging.

Air Gap - The technology of flexible circuits rapidly increased the flexibility that is mainly achieved by layers with one main advantage “unbinding”. This is an essential aspect of the flexible circuit assembly, allowing the layer to freely flex.

Polyimide FR-4 Flexible Printed Circuit Board

Controlled Impedance - is responsible for increasing the signal switching speeds used transmission lines. Today’s designs is increasing the speed and minimizing the electrical reflections. It's help to ensure no errors between the transitions and the track interconnections. On the other hand, a perfectly designed and optimized controlled impedance can allow great control of the material of the cable and its physical dimensions. The controlled impedance in order to uniform in both thickness and electrical properties that is not a barrier for the industry.

Penalization - allows the circuit to be durable in components assembly. Once the panel is completed the circuit is ready for the end product.

Pressure Sensitive Adhesives (PSAs) - are used in projects and applications that a portion of the circuit has to be extra secured to a specific condition or location in the end product. The assembly process includes a releasing of the abradant liner and the adhesive with remains exposed is allowing the manufacturer to press the circuit in its place and keep it durable for use.

Shielding - when there is a demand to limit electrostatic and electromagnetic interferences that securing is applied.
The shielding can be solid or electromagnetic. Both of the materials are insulating signal lines and any noise.

Manufacturing of Flexible Printed Circuit Board

___________________________________________

FPC is usually created by a photolithographic one sheet a time, also more efficient way is adopting R oll T o R oll ( RTR ).

1. Shearing: Crop the row material.
2. Computer Numerical Control (CNC): CNC is the drilling process.
3. Plating hole: Plate copper on hole.
4. Dry film lamination: create an etching layer of resistance.
5. Exposure: create an exposure area.
6. Development:The exposure area is polymerized and hardened by UV-rays.
7. Etching:remove the non-exposure area by chemical reaction.
8. Stripping:circuit pattern exposed.
9. Automated Optical Inspection (AOI):checks the quality of the printed board.
10. Coverlay pre-lamination:the board is covered with an insulation layer called “overlay”.
11. Hotpress:Bond between the overlay and the copper layer.
12. Metal finish: Coated to protect the terminal function.
13.Test: test the finished design.

Polyimide FR-4 Flexible Printed Circuit Board

How Senyan-PCB Stands Out from Other FPC Competitors?

1. High-quality PCB raw materials with flexibility, ensuring the quality of the source.
Cover Film: TaiFlex, APLUS, RCCT
Material: Dupont, TaiFlex
PI reinforce: UBE, TaiFlex, SKC
Electromagnetic membrane: Fang Bang, Toyo, Sankei
2. Professional research and seasoned development department in FPC production and quality.
3. Different end types as CTP, flexible PCB led strip, Biological recognition, automotive, and more…
4. Provide the best quality end-design product based on reduced fabricating costs.
5. Team of professionals available at your services 24/7.
6. Strictly following the IPC standards.
7. Fast delivery time.

Our service:
* PCB & PCBA OEM/ODM and clone service
* Sign NDA (Non-disclosure Agreement) for All customers
* MOQ : 1PCS is available for us
* One-stop turnkey solution
* One Year Product Warranty
* Products are 100% quality checked in both functionality and cosmetic.

PCB or PCBA Files Requests:
1. Gerber files of the bare PCB board
2. BOM (Bill of material) for assembly (please kindly advise us if there is any acceptablecomponents substitution.)
3. Testing Guide & Test Fixtures if necessary
4. Programming files & Programming tool if necessary
5. Schematic if necessary

SMT Manufacturing Capability

SMT Manufacturing Capability
Item		Manufacturing Capability in process	Manufacturing Method
Production size(Min/Max)		50×50mm / 500×500mm
Production board thickness		0.2 ～ 4mm
Printing solder paste	Support method		Magnetism fixture, vacuo platform
	Clamping method		Sticking up by vacuo, clamping on both sides ,flexible clamping with sheet, flexible clamping with thick board
	Cleaning Method of printing solder paste		Dry method+ wetting method+ Vacuo method
	Accuracy of printing	±0.025mm
SPI	Repeated accuracy of volume	<1% at 3σ
Mounting component	Components size	0603(Option) L75mm Connector
	Pitch	0.15mm
	Repeated accuracy	±0.01mm
AOI	FOV size	61×45mm
AOI	Test speed	9150mm²/Sec
3D X-ray	Shootingangle	0-45

Detail For PCB:

Item	Capability
1.Base Material	FR-4 / High TG FR-4 /Aluminum /CEM-1/Rogers/Arlon/Taconic/Teflon
2.Layers	1-22
3.Finised inner/outer copper thickness	1-6OZ
4.Finished board thickness	0.2-7.0mm
5.Min hole size	Mechanical hole: 0.15mm Laser hole: 0.1mm
6.Controlled Impedance	+/-5%
7.Plugging vias capability	0.2-0.8mm
8.Outline profile	Rout/ V-cut/ Bridge/ Stamp hole
9.Surface treatment	HASL, HASL lead free, Immersion Gold, Immersion Tin, Immersion Silver, Hard gold, Flash gold, OSP…

Polyimide FR-4 Flexible Printed Circuit Board

1. who are we?
We are based in Guangdong, China, start from 2006,sell to Southeast Asia(20.00%),South America(10.00%),Northern Europe(10.00%),South Asia(10.00%),North America(5.00%),Eastern Europe(5.00%),Africa(5.00%),Oceania(5.00%),Mid East(5.00%),Eastern Asia(5.00%),Western Europe(5.00%),Central America(5.00%),Southern Europe(5.00%),Domestic Market(5.00%). There are total about 301-500 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
PCB,PCBA,Electronic Component,Electronic product development and design,SMT steel mesh production

4. why should you buy from us not from other suppliers?
<1>We do some policy to keep raw material safe.
<2> We have high class non-dust workshops.
<3> QC in workshop and packaging.
<4> When meet the quality complains, we will hold a meeting with production, purchasing and packaging departments in 24 hours.

5. what services can we provide?
Accepted Delivery Terms: FOB；
Accepted Payment Currency: TT in advantage;
Accepted Payment Type: Paypal, WESTERN UNION, VISA, ESCROW;
Language Spoken:Chinese, English.
